As-Built Deliverable

Facility Site Asset Class

Facility Site As-built Survey Data Template

Facility Site Template standardizes the deliverable format for below Index.

Facility Site Collect Index

Facility Site Features comprise point, linear, and polygon features with coordinates recorded as Linestring text.

File

Feature Class

Facility Features

Coordinates Collect

As Linestring text format:
Lat1, Long1; Lat2, Long2; Lat3, Long3

Attribute Collect Information

Facility Site As-built Survey Data Template

Site Assets

Building, Improved Surface, Photo Point, Bench, Curb, Drinking Fountain, Dumpster, Flag Pole, Fuel Tank, Misc. Pole, Pet Tethering Post, Phone, Picnic Table, Playground, Ramp, Sidewalk, Sign, Spigot, Trash Receptacle

For point features at base
For polygon features at each corner

1. Plan ID
2. Comments

Security

Camera, Fence, Gate, Lock

At base of feature

Storm

Culvert, Outlet, Storm Main, Storm Structure

Report with Drainage Asset Class website tab

Communications

Comm. Cabinet, Communication Line, Communication Pole, Communication Tower

For devices and structures at base of feature
For lines at ends and direction changes

Electrical

Electrical Cabinet, Electrical Line, Electrical Pole, Light, Transformer

For devices and structures at base of feature
For lines at ends and direction changes

Gas

Gas Main, Gas Structure, Gas Valve

For structures and valves at base of feature
For lines at ends and direction changes

Sanitary

Lift Station, Sanitary Fitting, Sanitary Main, Sanitary Service, Sanitary Structure, Sewage Tank

For structures and fittings at base of feature
For lines at ends and direction changes

Water

Hydrants, Water Fitting, Water Main, Water Service, Water Structure, Water Valve

For structures and fittings at base of feature
For lines at ends and direction changes

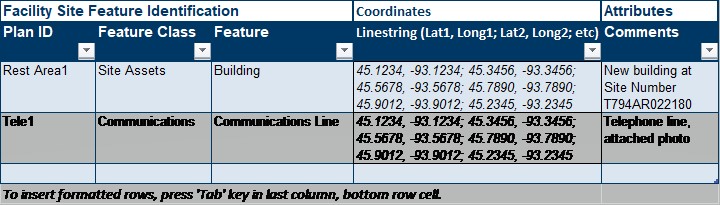

Facility Site Deliverable Example

Example 1: Typical Facility Site improvement project

Example of populated Facility Site As-built Survey Data table.
