Signing Asset Class

Signing Support and Panels Template standardizes deliverable for below Index.

Insert like rows for supports with multiple panels. Modified existing signs may use TAMS IDs.

File	Support Class	Support Type	Coordinates collect point	Support Attribute Collect Information	Panel Attributes Collect Information
Signing Support and Panel As-built Survey Data Template	Ground	Flex Post	At middle of panel	1. Plan ID 2. Support Type Group 3. Support Position 4. Travel Direction 5. Route Type 6. Ground Mount Type 7. Number of Posts 8. Support Install Date	1. MUTCD Code 2. Panel Class Code 3. Panel Sheet Type 4. Panel Facing Direction 5. Panel Column Position 6. Panel Row Position 7. Panel Height and Width 8. Panel Install Date 9. Panel Fabricator 10. Panel Manufacturer
		Other
		Square Tube
		U Channel
	I Beam	W4- 13 I Beam; W5- 16 I Beam; W6- 20 I Beam; W8- 24 I Beam; W8- 28 I Beam; W8- 31 I Beam; W10- 39 I Beam	At middle of panel	1. Plan ID 2. Support Type Group 3. Support Position 4. Travel Direction 5. Route Type 6. Number of Posts 7. Support Install Date
	Other Asset	Advanced Warning Flasher; Bridge Face; Bridge Pier; Bridge Rail; Fence; Gate Arm; Guardrail; Light Pole; Median Barrier; Noise Wall; Ramp Meter; Retaining Wall; Signal; Utility Post	At middle of panel or nearest accessible point	1. Plan ID 2. Support Type Group 3. Support Position 4. Travel Direction 5. Route Type 6. Other Asset Mount Type 7. Number of Posts 8. Support Install Date
	Overhead	Bridge Truss	At right post	1. Plan ID 2. Support Type Group 3. Support Position 4. Travel Direction 5. Route Type 6. Overhead Design Type 7. Number of Posts 8. Support Install Date
		Truss
		Monotube

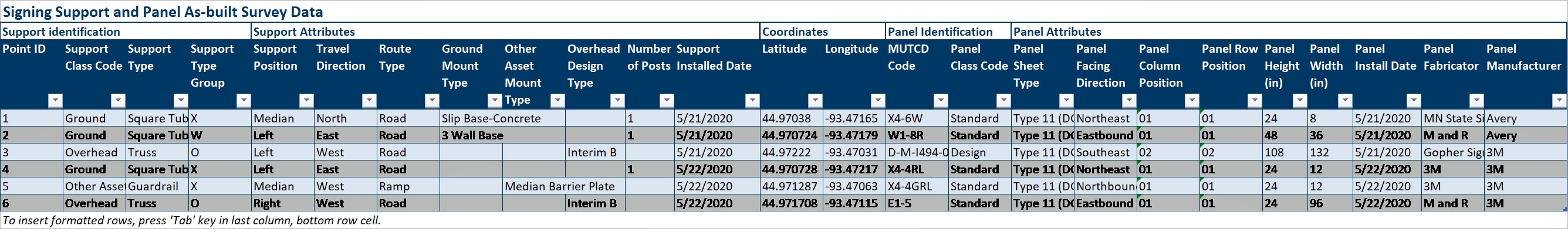

As-Built Deliverable
