Traffic Barriers Asset Class
Traffic Barrier As-built Survey Data Template
Traffic Barrier Template (Excel) standardizes the deliverable format for below Index.
Traffic Barrier Feature Collect Index
Traffic Barrier are point, linear, and area features with coordinates recorded as linestring text.
| File | Barrier Group | Traffic Barrier Class | Manufacturer or Standard Plan/Plate/Detail | Collect Product line [Category Type] | Collect Product [Subcategory Type] | Coordinates collect point As Linestring text format: Lat1, Long1; Lat2, Long2; Lat3, Long3 |
Attribute Collect Information |
|---|---|---|---|---|---|---|---|
| Traffic Barrier As-built Survey Data Template | Termini | Cable Anchor | HTCB_ANCHOR - Anchorage Assemblies for HTCB | End Anchorage | - | Lat, Long at anchor point | 1. Post Type 2. Blockout Type 3. Comments |
| Crash Cushion | Barrier Systems by Lindsay | Universal TAU | TAU-M | At start and end of designed system | |||
| Trinity Highway Products, LLC | QuadGuard | QuadGuard M10 | |||||
| Work Area Protection | Smart Cushion | SCI-100GM (Smart Cushion) | |||||
| Barrier Systems by Lindsay | Universal TAU | Universal TAU-II, or Universal TAU-II-R | |||||
| Trinity Highway Products, LLC | QuadGuard | QuadGuard, or QuadGuard ELITE | |||||
| Work Area Protection | Smart Cushion | SCI-100GM (Smart Cushion) | |||||
| 5-297. 611 Thrie Beam Bullnose Guardrail for Medians (14' 2-1/2" Width) | Bullnose | Thrie Beam | At start and end of designed system Every 25 feet along curves |
||||
| BULLNOSE_TO_TYPE 31 - Thrie Beam Bullnose Transition to Traffic Barrier Type 31 | Bullnose | W-Beam | |||||
| End Terminal | Road Systems, Inc. | BEAT | Bursting Energy Absorbing Terminal (BEAT) | At start and end of designed system | |||
| Road Systems, Inc. | SKT | Sequential Kinking Terminal (SKT) | |||||
| Trinity Highway Products, LLC | ETPlus | Extruder Terminal (ET-PLUS) | |||||
| Trinity Highway Products, LLC | SoftStop | Trinity SOFT-STOP Terminal | |||||
| Road Systems, Inc. | MSKT | MASH Sequentially Kinking Terminal (MSKT) | |||||
| Barrier Systems by Lindsay | X-Tension | X-Tension Guardrail End Terminal | |||||
| Road Systems, Inc. | Fleat 350 | Flared Energy-Absorbing Terminal (FLEAT) | |||||
| Road Systems, Inc. | - | MASH Flared Terminal (MFLEAT) | |||||
| Trinity Highway Products, LLC | SRT-350 | Slotted Rail Terminal (SRT-350, Wood Post) | |||||
| Trinity Highway Products, LLC | SRT-M10 | MASH Slotted Rail Terminal (SRT-M10) | |||||
| Trinity Highway Products, LLC | Brakemaster 350 | Brakemaster - 350 | |||||
| Trinity Highway Products, LLC | CAT-350 | Crash Cushion Attenuating Terminal (CAT-350) | |||||
| Trinity Highway Products, LLC | X-MAS | X-Tension Median Attenuator System (X-MAS) | |||||
| Transition | - | - | - | ||||
| Linear barrier | Plate Beam | - | Thrie Beam | - | Lat, Long Every 50' and change in direction | 1. Post Type 2. Blockout Type 3. Comments |
|
| 5-297. 696 Traffic Barrier Type 31 Low Fill/Long Span *** | W-Beam | Type 31 Long Span | |||||
| - | - | Type 31 Standard | |||||
| 8338 - W-Beam Guardrail & End Anchorages (Installation with Steel Posts) | - | 8338 Steel | |||||
| 8307 - W-Beam Guardrail & Anchorages (Installation with Wood Posts) | - | 8307 Wood | |||||
| - | - | Short Radius | |||||
| Box Beam | - | Box Beam Weak Post | - | ||||
| Concrete | 8308 - Reinforced Concrete Median Barrier Type F (Non-Glare Screen Type) | 8308 | - | ||||
| 8309 - Reinforced Concrete Median Barrier Type F & Glare Screen | 8309 | - | |||||
| 8337 - Temporary Portable Precast Concrete Barrier (Type F) | 8337 | - | |||||
| 5-297. 680 Portable Precast Concrete Barrier Anchoring | 680 | - | |||||
| Cable | Brifen | High Tension | Brifen TL-4 (4-Rope) WRSF | Lat, Long Every 250' and 50' on curve | 1. Post Type 2. Blockout Type 3. # of Cables 4. Comments |
||
| Gibraltar | High Tension | Gibraltar TL-4-4-Cable Barrier System | |||||
| 8330 - 3-Cable Guardrail with Wood Posts | Low Tension | 8330 | |||||
| 8331 - 3-Cable Guardrail with Steel Posts | - | 8331 | |||||
| Other | - | 8320 | - | Lat, Long Every 50' and change in direction | |||
| - | 8321 | - | |||||
| - | - | CASS S3 | |||||
| - | - | Other |

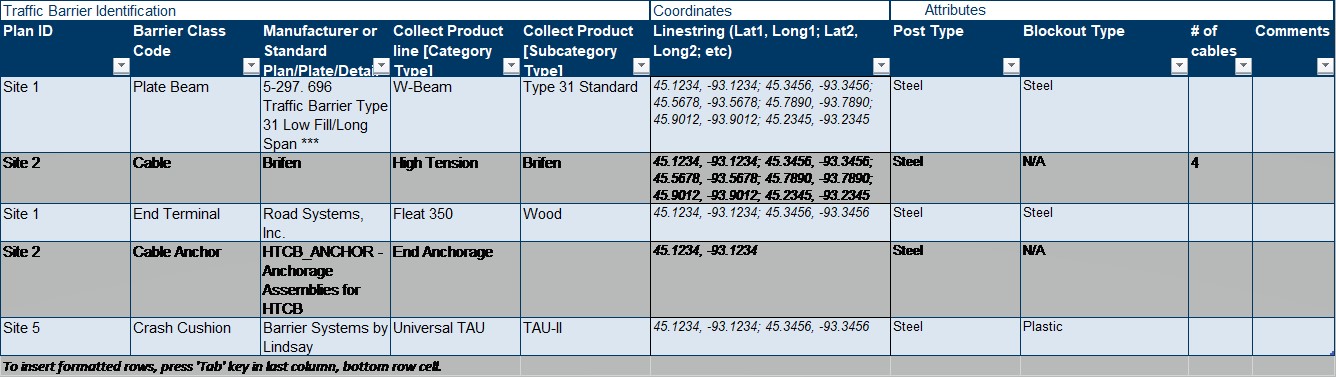

Traffic Barrier Deliverable Examples
References
Legacy TABLE Z (Excel) format will be accepted until phased out of contracts.
- About Traffic Barrier (PDF)
- About Traffic Barrier approved products
