Rumble Strip Asset Class

Rumble Strip As-built Survey Data Template

Rumble Strip Template standardizes the deliverable format for below Index.

Rumble Strip Feature Collect Index

Rumble strips are linear features with coordinates recorded as Linestring text.

File

Feature Class

Feature

Coordinates Collect

As Linestring text format:
Lat1, Long1; Lat2, Long2; Lat3, Long3

Attribute Collect Information

Rumble Strip As-built Survey Data Template

Rumble Strip

Milled Rumble Strip

At start and end locations of rumble strips; for curves at appropriate interval to show curvature may be computer generated

  1. Breaks for city limits are considered starting and ending points.
  2. Breaks for intersections and other entrances are not considered starting and ending points.

1. Continuous or intermittent
2. Rectangular or Sinusoidal
3. Centerline or Edge line
4. Rumble strip width
5. Offset from centerline (measured to the middle of rumble strip)

Milled Rumble Strip – Intermittent

Milled Sinusoidal Rumble Strip

Milled Sinusoidal Rumble Strip-CL

Milled Sinusoidal Rumble Strip (Concrete)

Milled Sinusoidal Rumble Strip Concrete-CL

Milled Sinusoidal Rumble Strip – Intermittent

Milled Sinusoidal Rumble Strip (Concrete) – Intermittent

Rumble Strip Deliverable Examples

Example 1

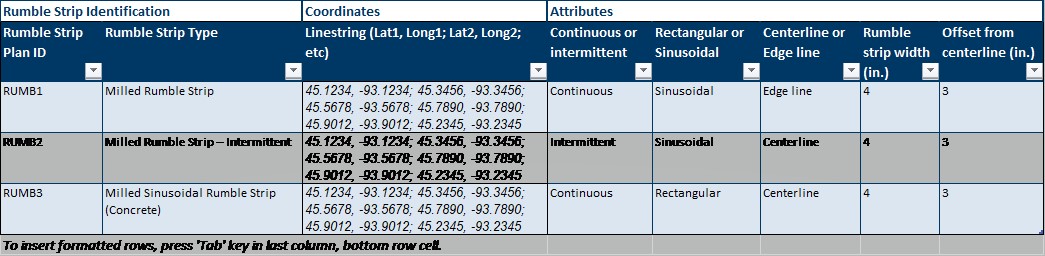

Example of a filled in Rumble Strips as-built survey data template

References

Legacy TABLE Z format will be accepted until phased out of contracts.
