As-Built Deliverable

Pavement Message Asset Class

Pavement Message As-built Survey Data Template

Pavement Message Template standardizes the deliverable format for below Index.

Pavement Message Feature Collect Index

File

Feature Class

Feature

Coordinates Collect Point

Attribute Collect Information

Pavement Message As-built Survey Data Template

Arrow

Arrow Straight

At center of Arrow

1. Pavement Message Material
2. Pavement Message Area (Sq. Ft.)

Left Arrow Right

Left Straight Arrow

Left Straight Right Arrow

Left Turn Arrow

Right Turn Arrow

Straight Right Arrow

Transition from Left Arrow

Transition from Right Arrow

Wrong Way Arrow

Rectangular

Railroad Crossing

At right end of rectangle

1. Pavement Message Material
2. Pavement Message Area (Sq. Ft.)
3. Number of Cross Walk Blocks
4. Stop Bar Length (Ft.)

Cross Walk Rails

Cross Walk Block

Stop Line

Text

Miscellaneous Marking

At center of Text

1. Pavement Message Material
2. Pavement Message Area (Sq. Ft.)

Yellow Curb

Individual 8' Character

MERGE

ONLY

PED XING

SCHOOL XING

SIGNAL AHEAD

STOP AHEAD

High Occupancy Vehicle

Triangle

24" White Crosshatch

At center of Crosshatch

1. Pavement Message Material
2. Pavement Message Area (Sq. Ft.)
3. Number of Triangles

24" Yellow Crosshatch

Pavement Message Deliverable Examples

Example 1

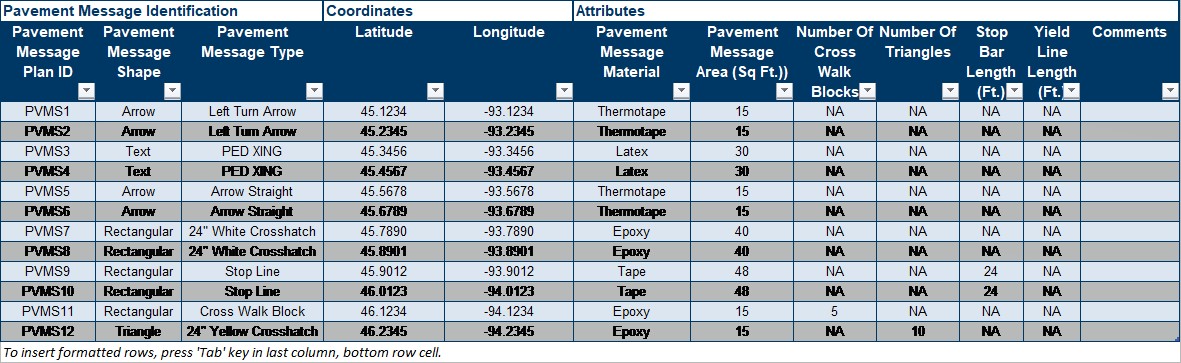

Example of a filled in Pavement Messages as-built survey data template
