Bridge 70038
See features of the bridge.
History & significance
Bridge 70038 was built in 1994 and carries U.S. Highway 169 Southbound over Eagle Creek Boulevard in Shakopee, Scott County. The single-span, prestressed, post-tensioned, spliced (segmented) concrete beam bridge is approximately 180 feet long. Its superstructure is comprised of nine prestressed, post-tensioned, segmented concrete beams with steel welded intermediate diaphragms between beams. The field-spliced construction allowed the use of prestressed concrete beams to be precast off-site under controlled conditions, yet still of an acceptable length to be transported to the bridge site. Further, the type allowed spans of a length otherwise unattainable and eliminated the need for central piers in the roadway. Bridge 70038 is significant as the first (along with its adjacent twin, Bridge 70037) prestressed, post-tensioned, spliced (segmented) concrete beam bridge in the state of Minnesota.
Location
City of Shakopee (Scott County)
Latitude, Longitude: 44.781383, -93.476989
Bridge features

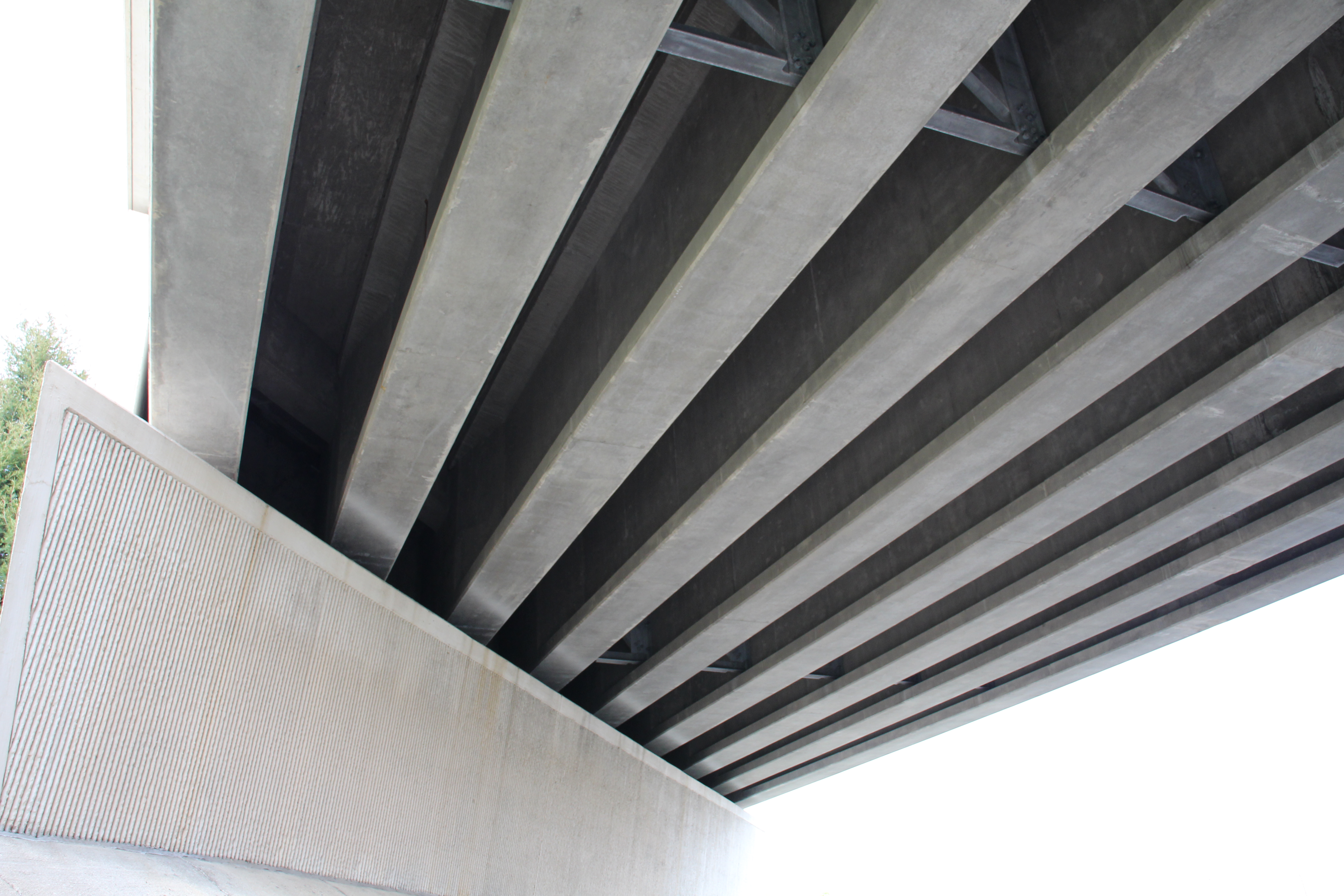

Prestressed concrete beams, spliced and post-tensioned into single beams, with steel diaphragms.
