Do It Right! Lessons from the field not to be repeated

General

General

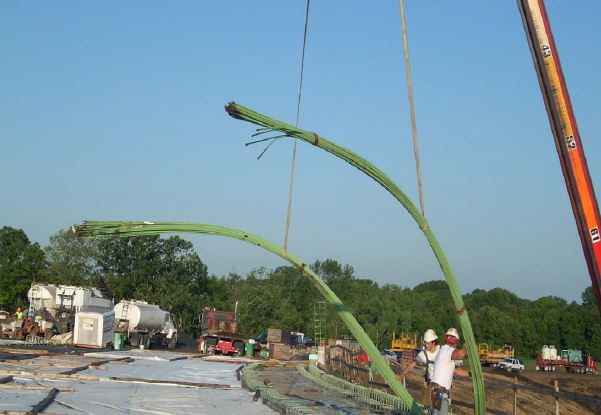

Don’t pick rebar like this!

It will damage the epoxy coating and is not safe.

  • Better to pick with a stiff spreader,
    with more tie points.
General
  • Looks like we’re going to get some
    extra special texture — for free!
  • Who knows why they put the chair in
    backwards...
General

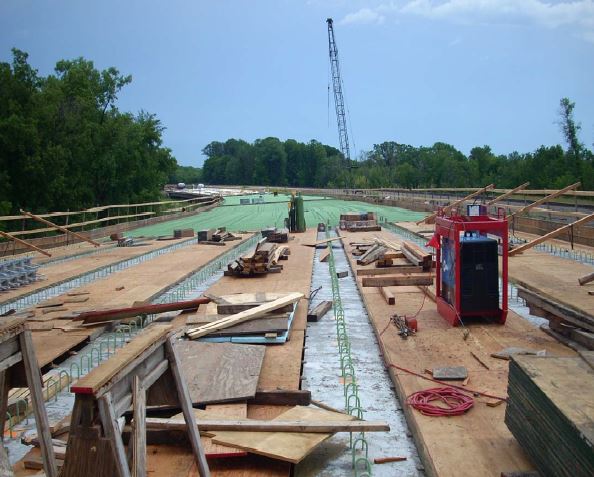

A cleaner job site is a safer job site.

  • Tripping, slipping and snagging hazards abound on this project.
General

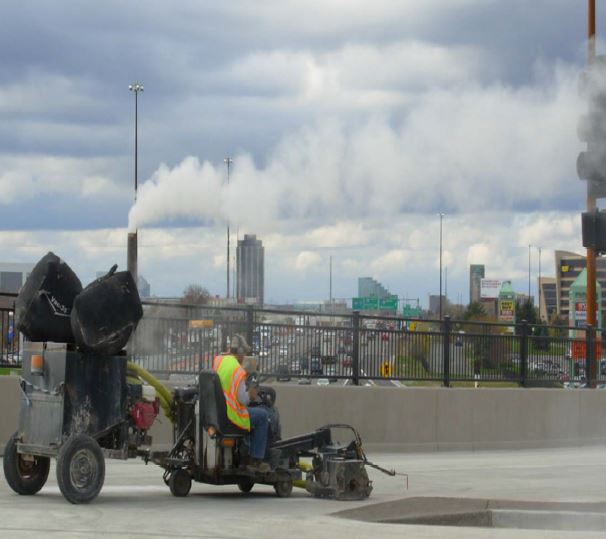

  • Look at the smoke coming from the world's first wood-fired deck grinder!
General

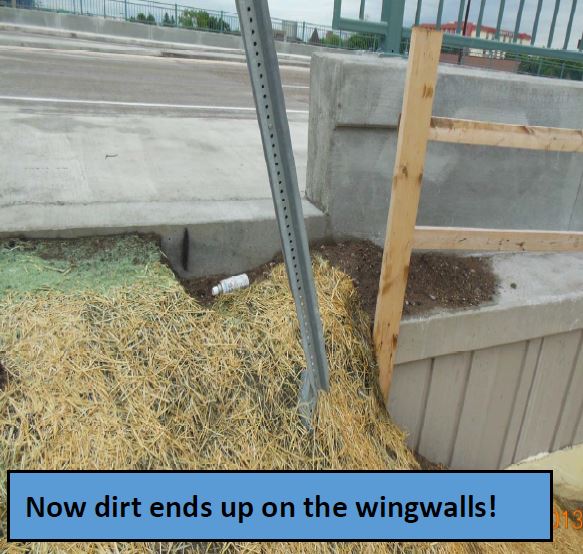

Now dirt ends up on the wing walls.

  • This is one negative possibility that
    might happen, now that the barriers have been put on the approach panels.
General

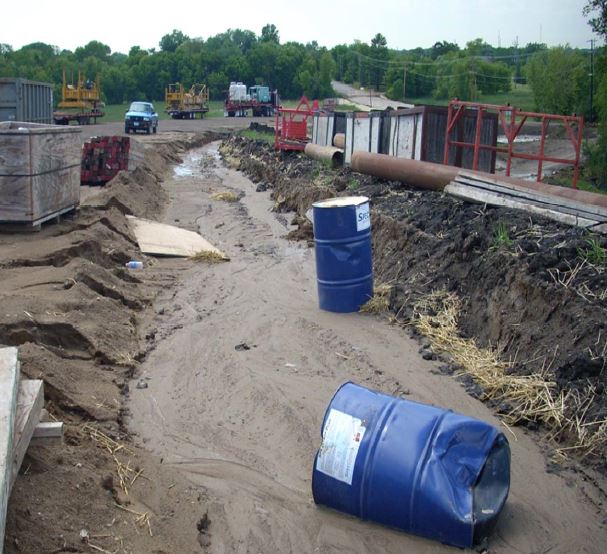

  • Don’t use ditches for storage areas. This doesn’t look good — and if an environmental reviewer saw this, we would likely be written up.
General

This scenario is not acceptable.

  • The driver of this truck could be ticketed and the company owner fined.
General

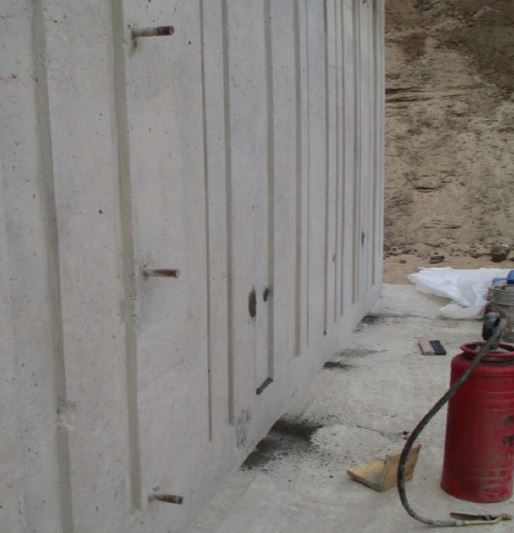

  • Use forms ties that are removable to a depth of at least 1 inch from the concrete face, without spalling or damaging the concrete.
General

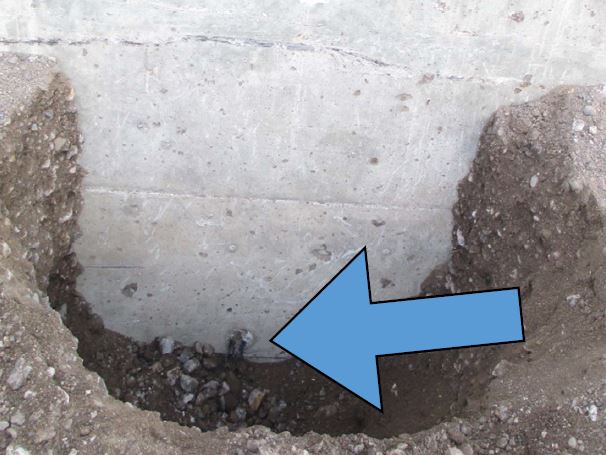

  • Make sure that the form tie holes are filled before the footings are backfilled.
  • In this case, they weren’t and it led to project delays.
General
  • I’m not sure if we can hold the contractor to clean this kind of mess up . . . but we can certainly bring it to the attention of their safety officer.
General

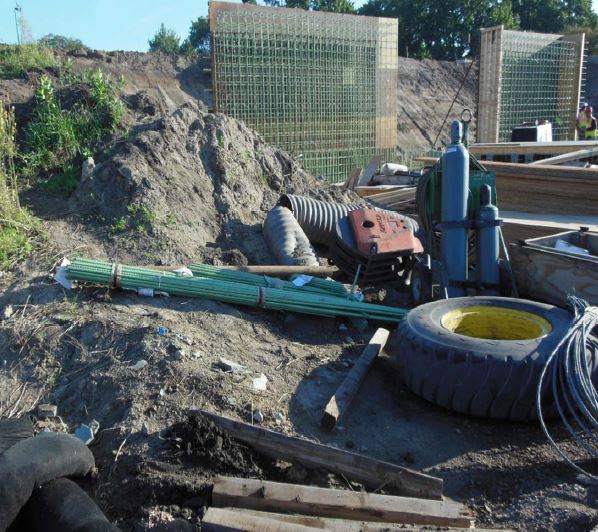

Try to convince the contractor that a clean jobsite is a safer jobsite.

  • They’ve got garbage, equipment and materials all jumbled around — getting muddy and hard to find when needed.
  • Anyone who has to traverse this mess is subject to higher risk of trips and falls.
General

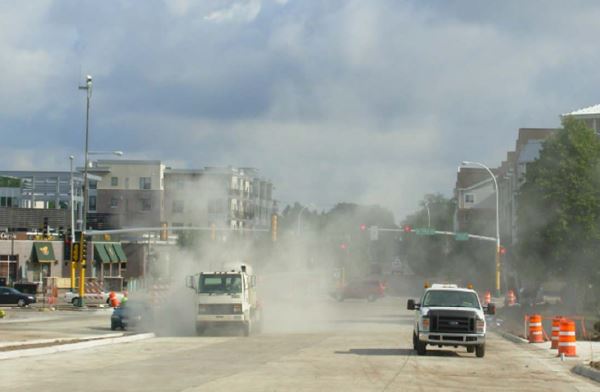

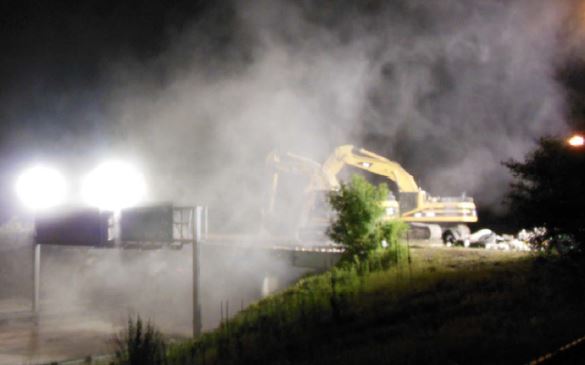

  • When removing a bridge with backhoe-mounted jackhammers, make sure the contractor has an adequate method for
    misting the concrete dust in the area.
  • This is to minimize dust blowing off the jobsite.
General

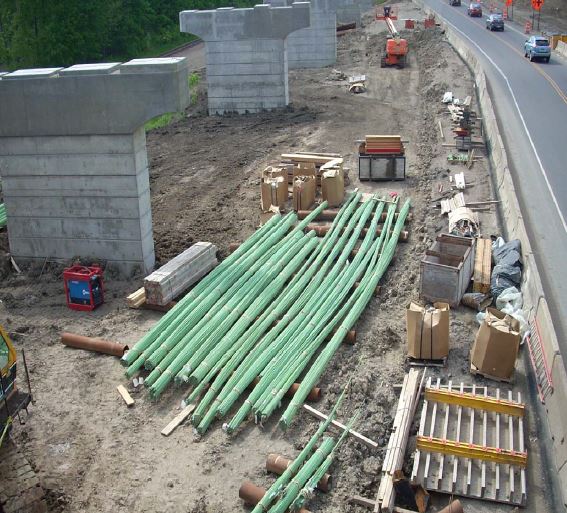

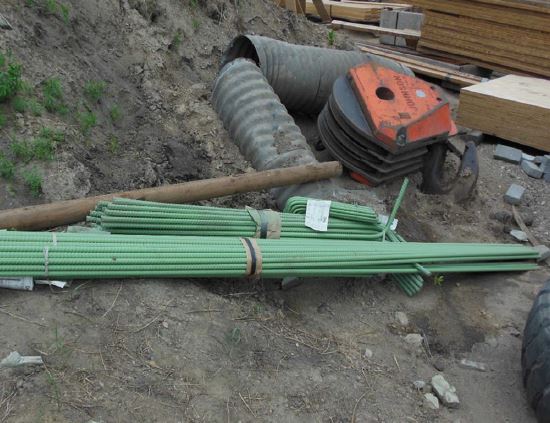

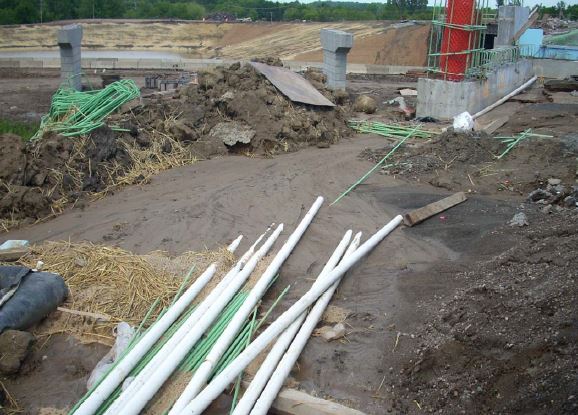

  • Convince the contractor to listen to the weather report — and to prepare for rain events.
  • Get all the rebar on substantial dunnage, and get everything out of the ditches!
General

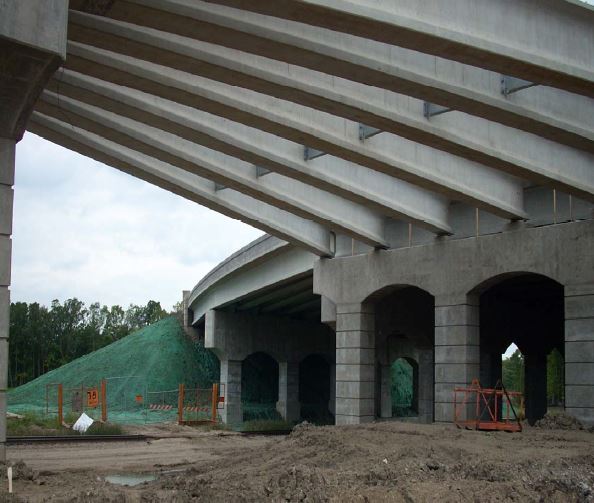

  • A bridge doesn't always end at an abutment.
General

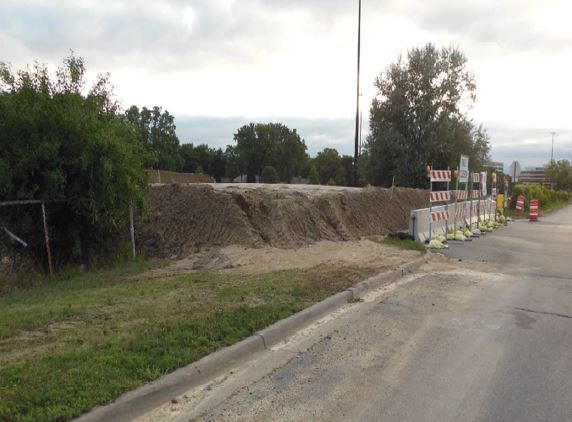

  • If the plans call for a surcharge, make sure things are performed in the correct order.
  • All excavations and removals taking place before building the surcharge should be completed as called for in the plans.
General

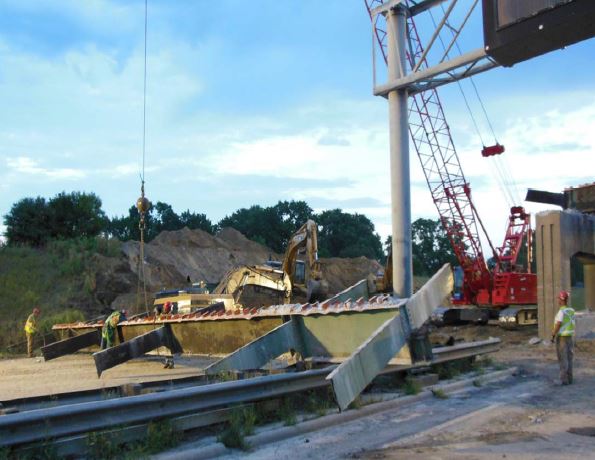

  • If you notice the contractor taking shortcuts that may damage property that isn’t intended to be removed, take a picture to document the action.
  • Try to convince the contractor to do this in such a way that it reduces the likelihood of unintended consequences.
General
  • Pile cut‐offs make great dunnage for holding rebar out of the mud!
General

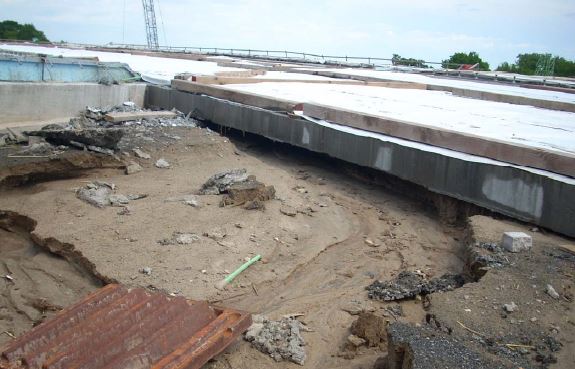

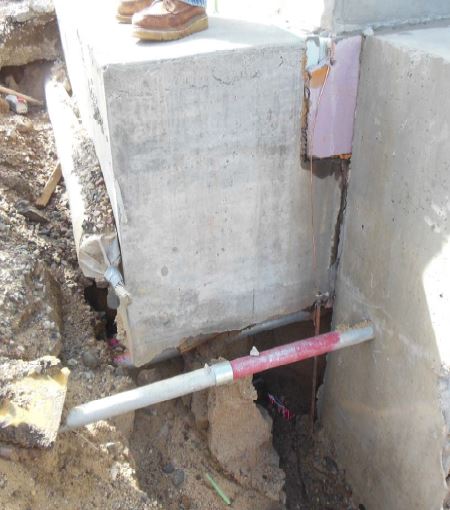

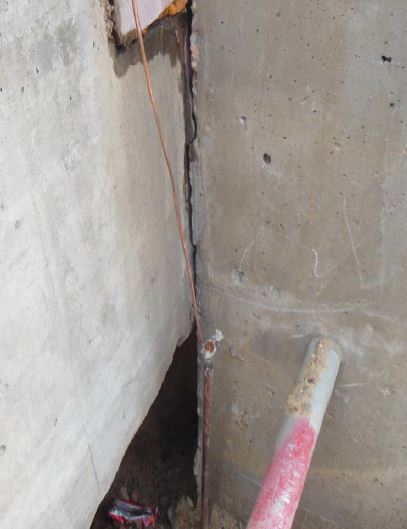

  • At least this washed out approach panel / wingwall allowed us to see how the sill will bind on the wingwall, and how the conduit will fail due to lack of expansion/deflection fitting.
General
  • At least this washout allows us to see how they built this.
General

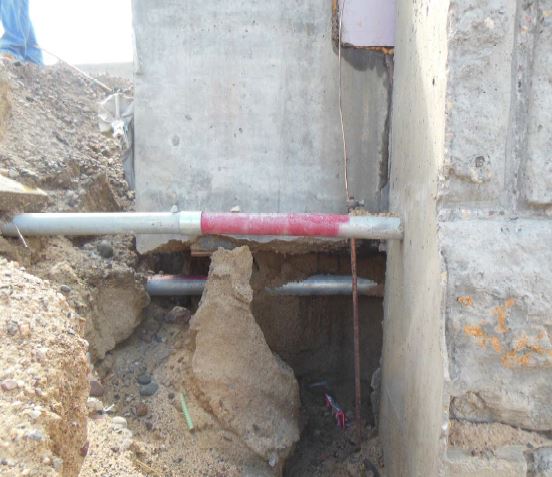

What's this?

  • One conduit feeding the light on the wingwall, and one feeding the lights on the barrier parapets.
General

Be prepared for rain!

  • After you’ve poured the deck and approach panel, and before the barriers have been poured and the drainage system is in, you’re especially vulnerable.
  • Rain falling on a large surface area can do some damage to unprotected infrastructure!
